Specifications
Product Details
| Product Name | Protective Sleeve Conical Head |
| Item No. |
HF-W053 |
| Material | Stainless Steel 304/316 |
| MOQ | 100pcs |
| Certificate | ISO9001 |
| Place of Origin | Shandong,China |
|
OEM |
Accepted |
| Sample | Acceptable |
Description

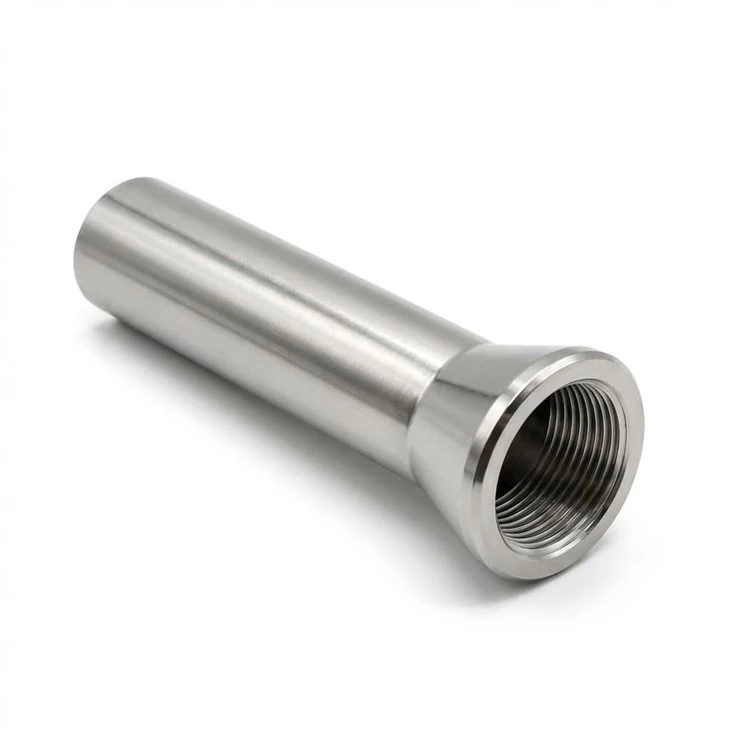

The Protective Sleeve with Conical Head is a precision-engineered fitting designed for use in stainless steel wire rope railing systems. It serves both a functional and aesthetic role in installations requiring clean termination points and long-term durability.
The product features a conical flared head and a cylindrical sleeve body. The flared opening guides the wire rope smoothly into the sleeve, reducing abrasion and pressure damage at the critical contact zone. The tapered shape also helps keep the cable aligned during tensioning and installation, minimizing risk of fraying or distortion.
Constructed entirely from corrosion-resistant stainless steel, this protective sleeve is especially suited for marine, architectural, and outdoor applications. It maintains structural stability and appearance over time, even in salt-laden or humid environments. The surface is finely polished to offer a clean and refined finish that complements modern railing systems.
Available in 1/8", 3/16", and 1/4" sizes, the inner bore is dimensioned for a snug fit with standard wire rope diameters. The sleeve is typically inserted into pre-drilled holes on wooden or metal posts, where it acts as a liner, preventing contact between the wire and the post material. This reduces localized stress, wear, and the risk of long-term fatigue failure.
By integrating this component into the system, installers can achieve a neater, safer, and more reliable railing setup, with fewer maintenance issues and improved visual quality.
FAQ
Q: What is the material of the sleeve?
A: It is made of stainless steel with polished surface.
Q: Can it be used in outdoor or marine environments?
A: Yes, it is corrosion-resistant and suitable for outdoor or coastal projects.
Q: What is the purpose of the conical head?
A: It guides the wire rope and reduces wear at the post hole.
Q: Is this sleeve compatible with wood and metal posts?
A: Yes, it can be inserted into both types of posts for reinforcement.
Q: Are different sizes available?
A: Yes, it is available in 1/8", 3/16", and 1/4" sizes.
